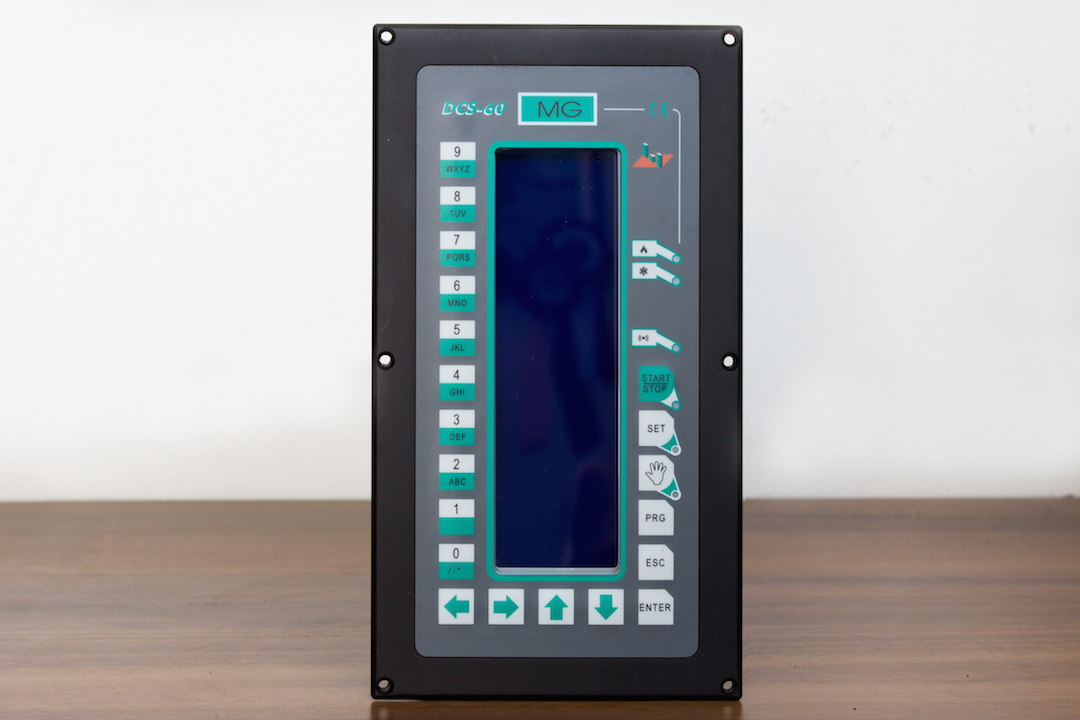

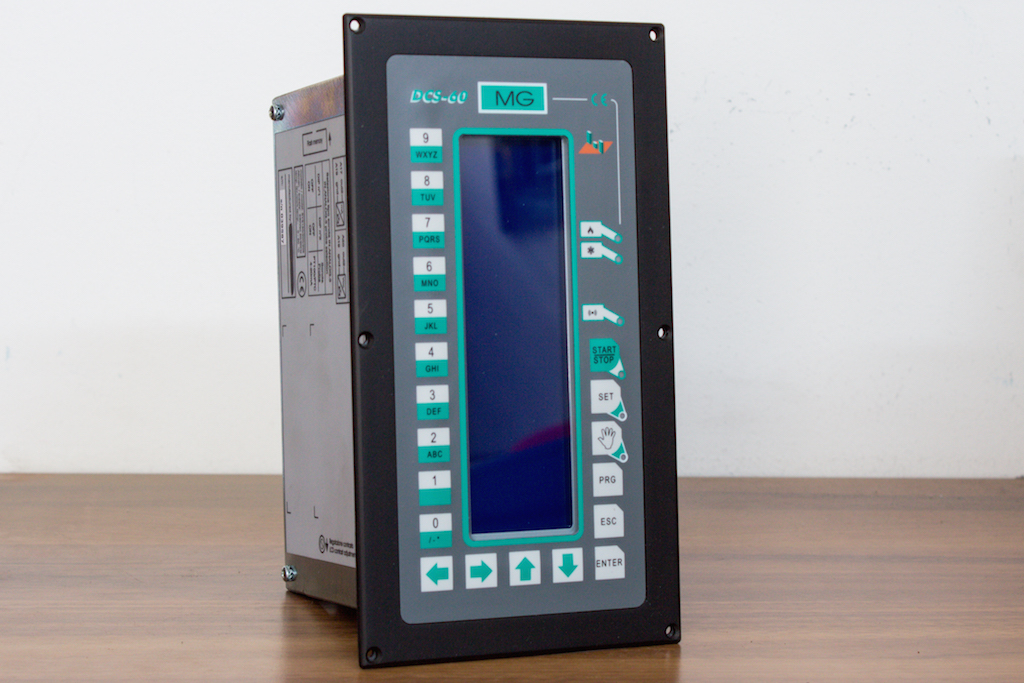

The DCS60 is a microprocessor equipped with high brightness graphic display 64x128 (pixel) on which you can view the theoretical dyeing cycle graph . The configuration of the instrument is extremely safe because it is password protected. Equipped with eight relay outputs, with which you can work in two modes: In mode 1 there is the possibility to connect the instrument to a PLC and using the binary combinations of the outputs F1, F2, F3, F4, F5 perform certain functions. In mode 2 (standard controller) is directly DCS60 that controls the functions of the process. Several versions of firmware already compiled allow the control of different types of machines in the field of dyeing and food. You can store up to 60 programs of 40 steps each one.
Microprocessor based reliable and high-performance
Possibility of connecting to a PLC and execution of certain functions through the binary combinations of the digital outputs F1, F2, F3, F4, F5
Possibility to use as a standard programmer executing each function through the command of a single digital output.
Possibility to store up to 60 programs of 40 steps each one
Possibility to change the sets and set times during the execution of the program
Visualization of temperature theoretical curve during the writing of the dyeing cycle
Configuration protected by password
Main panel IP65
Support for multiple languages
Available different versions of firmware for controlling machines for dyeing like Jet Flow, Yarn, Hanks etc ...
Also available versions of firmware for the control of machinery for the food sector
Possibility to use external alarm signal to the controller (connection in special input)

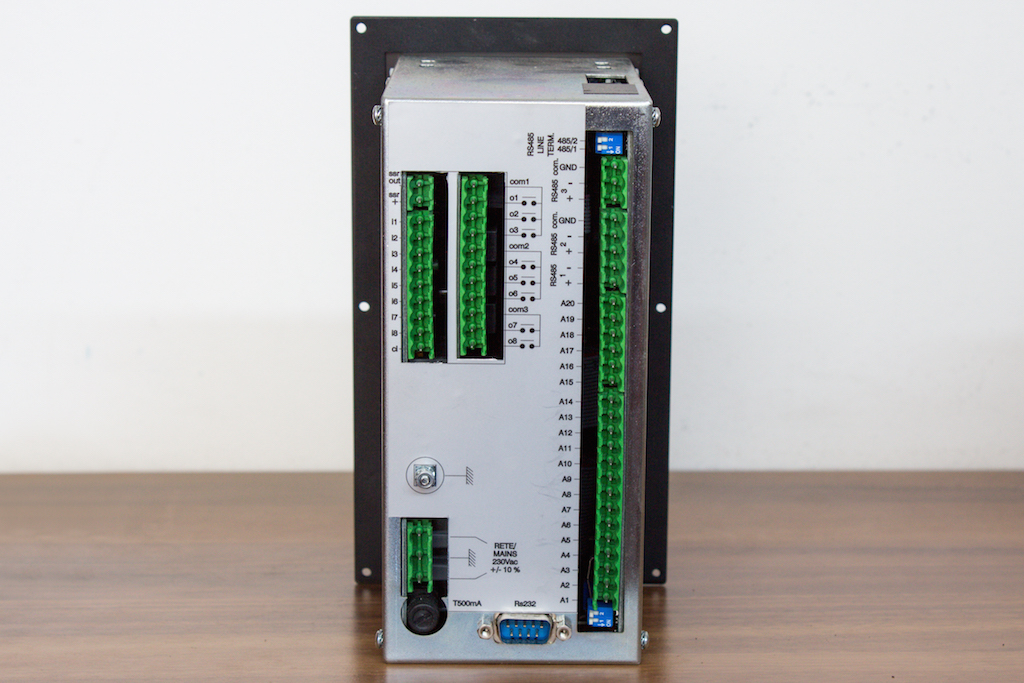

| Display | 64 x 128 pixel high visibility |
|---|---|
| Digital input | N° 8 type NPN |
| Static output | N° 1 (ssr) 12 Vdc max 50mA |
| Digital output | N° 8 a relay |
| Analog input | N° 3 (PT100 or PTC user selectable by dip-switch) N° 1 (0-20mA / 4-20mA) N° 1 (0-10V or 0-1V user selectable by dip-switch) |
| Analog output | N° 2 (0-20mA / 4-20mA / 0-10V) |
| Serials Lines | Serial 1 RS232 Serial 2 RS485 Serial 3 RS485 |
| Power Supply | 230Vac +/- 20% 30VA |
